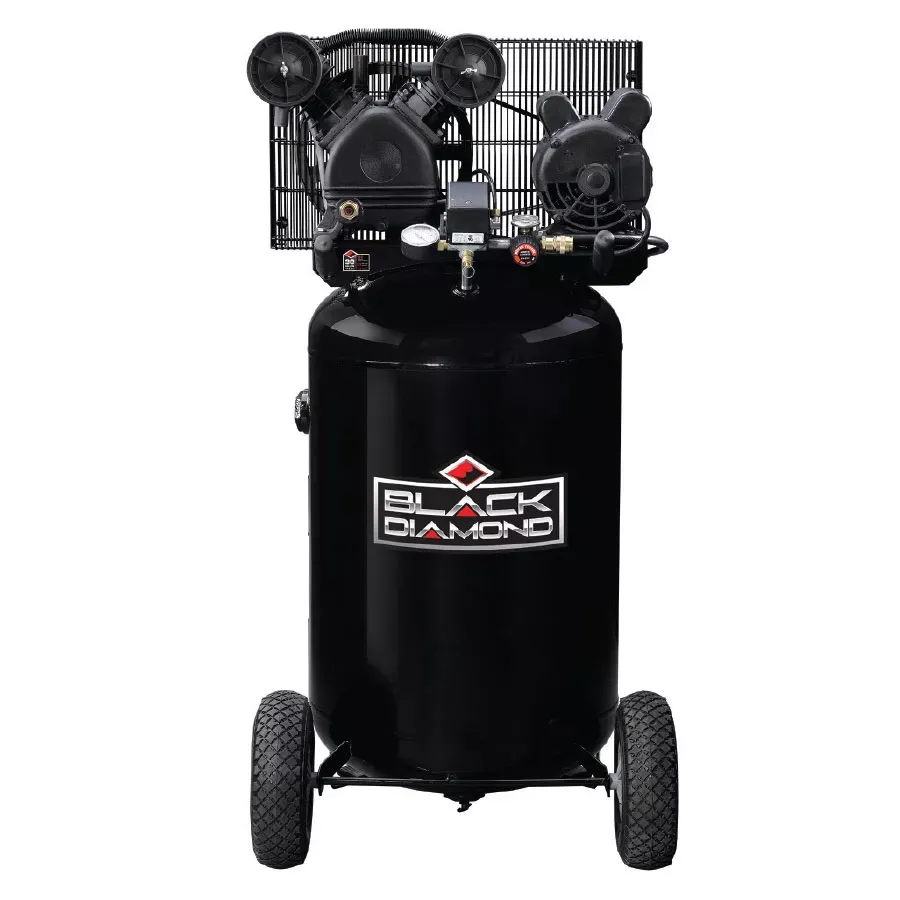

Black Diamond’s 30 gallon vertical portable compressor features a cast iron, v-twin cylinder pump. Oil lubricated for long life with an easy view oil level sight glass and accessible oil fill. A vertical portable space saving design. The motor is factory wired at 120 Volt and can be converted to 240 Volt applications if needed – simply contact your local electrician. Thermal overload protection protects the motor for long life. The ergonomically positioned handles and 10″ full pneumatic tires make moving this unit a breeze. The wire form belt guard protects all moving parts. Equipped with a quick set regulator, tool & tank pressure gauges, and conveniently located on/off. Fully assembled. This compressor is certified to UL1450 and CAS22.2 for sale in the U.S. and Canada.
Features:
- Cast iron v-twin cylinder oil lubricated single stage pump
- Aluminum head aids in heat dissipation
- Automotive style ball bearings
- Oil level sight glass with easily accessible oil fill
- 10″ cast iron balanced flywheel
- 1.6 RHP dual volt motor factory wired 120 volt (can be converted for a 240V application)
- 30 gallon ASME vertical portable tank with pneumatic tires for maximum portability
- Equipped with quick set regulator, tool and tank pressure gauges, quick connect air outlet and on/off switch
Specifications:
- Tank Size: 30 Gallon ASME
- Maximum Working Pressure: 155 PSI
- SCFM @ 40 PSI: 6.2
- SCFM @ 90 PSI: 5.3
- Voltage: 120/240 Dual Volt
- Running HP: 1.6
- Certifications: UL & CSA
- Warranty: 2 Year Limited
