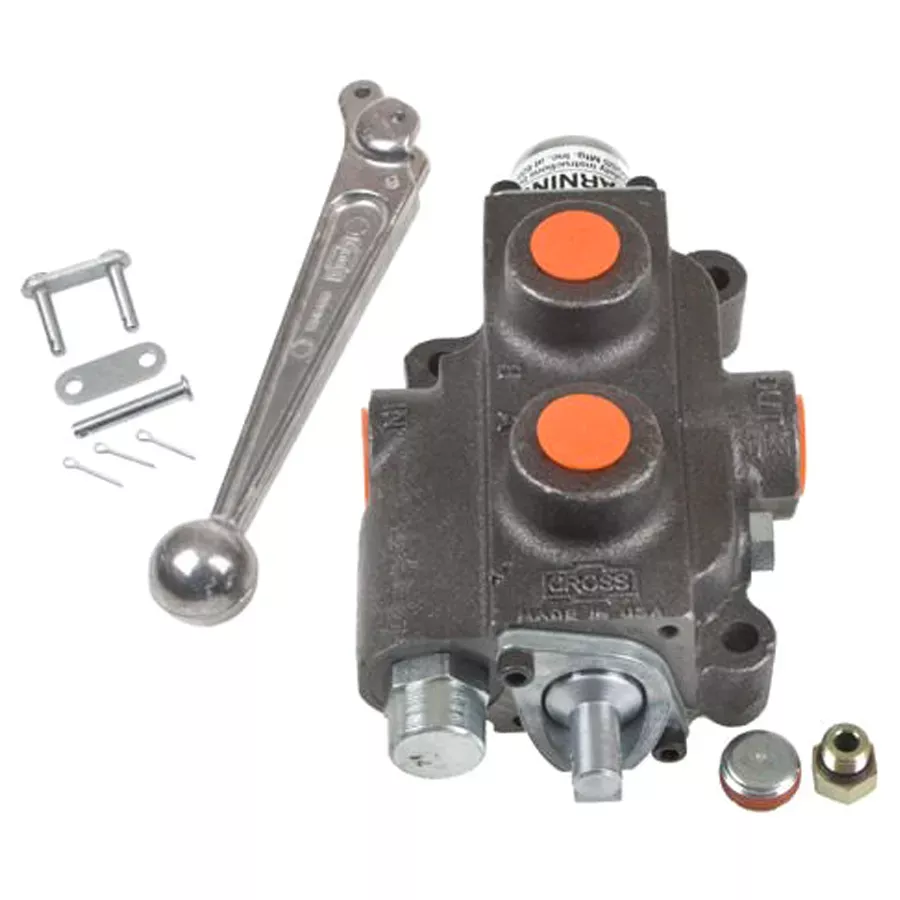

Cross Manufacturing SCV-1 Hydraulic Valve Converta Series is a highly versatile 3-way or 4-way, 3 position directional control valve for use with either double-acting or single-acting hydraulic cylinders. Converta can be easily converted to a 3-way valve by using the conversion and port pipe plug supplied with the valve. It can also be converted to a 3-position manual detent valve by ordering a separate detent kit: part 1V0294.
This valve may be used to operate a double or single acting cylinder, or a reversible or single direction motor when a hold position in neutral is required.
- 3 position, 4 way convertible to 3 positions and 3 way
- Open center and spring centered to neutral
- 2000 psi maximum operating pressure
- 25 gpm flow rate
- 3/4″ NPTF inlet and outlet ports
- 1/2″ NPTF work ports
- Built-in relief valve (preset at 2000 psi)
