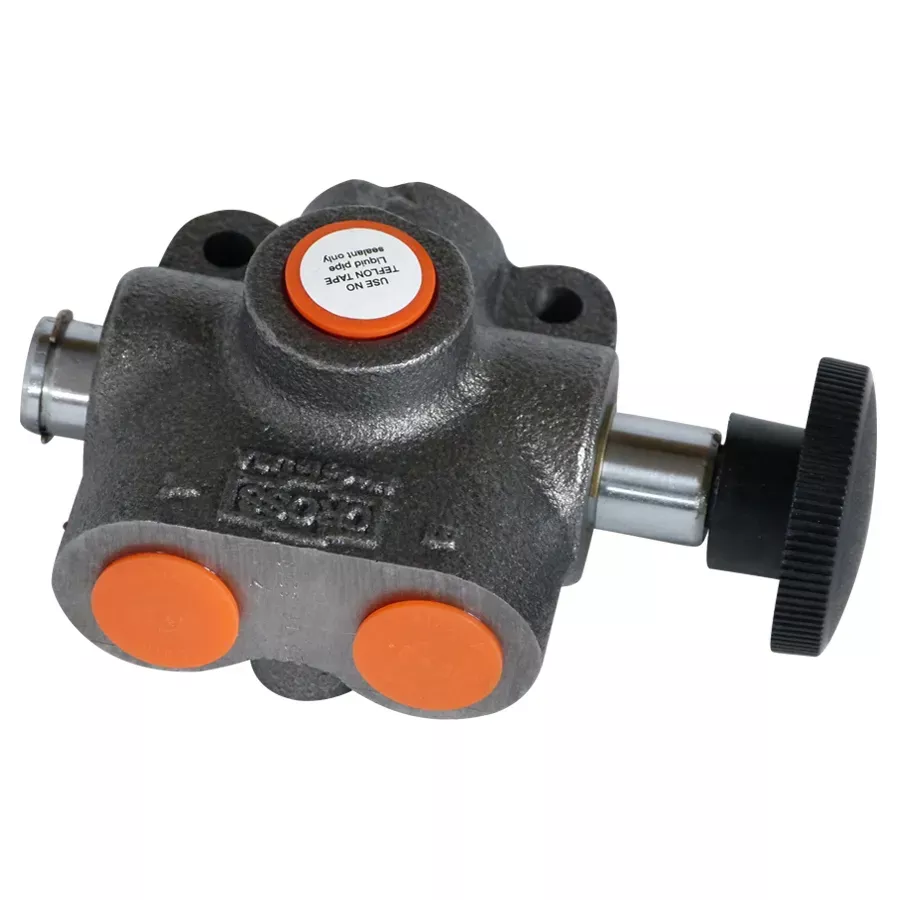

Cross Manufacturing SVS-2 Selector Valve is a 2-position, 3 port unit designed for maximum performance at an economical price. This valves can be used for unit-directional cylinder and motor control or for selecting one of two circuits from a single pump. Hard chrome plated spool. Knob actuator. 2500 psi operating pressure.
GENERAL SPECIFICATIONS
- Maximum working pressure: 2500 psi (172 bar)
- Maximum shock and surge pressure: 3500 psi (242 bar)
- Maximum flow capacity VS2: 20 gpm (76 ltr/min)
- Mounting: 2 bolt, any position
MATERIAL SPECIFICATIONS
- Body: High tensile strength cast iron
- Spool: Ground, plated and polished steel alloy
- Seals: Buna N
STANDARD FEATURES
- 3/4 – 16 (1/2″ SAE 8) ports on VS2
- Knob actuator (at port ‘B’)
- Front inlet port position
