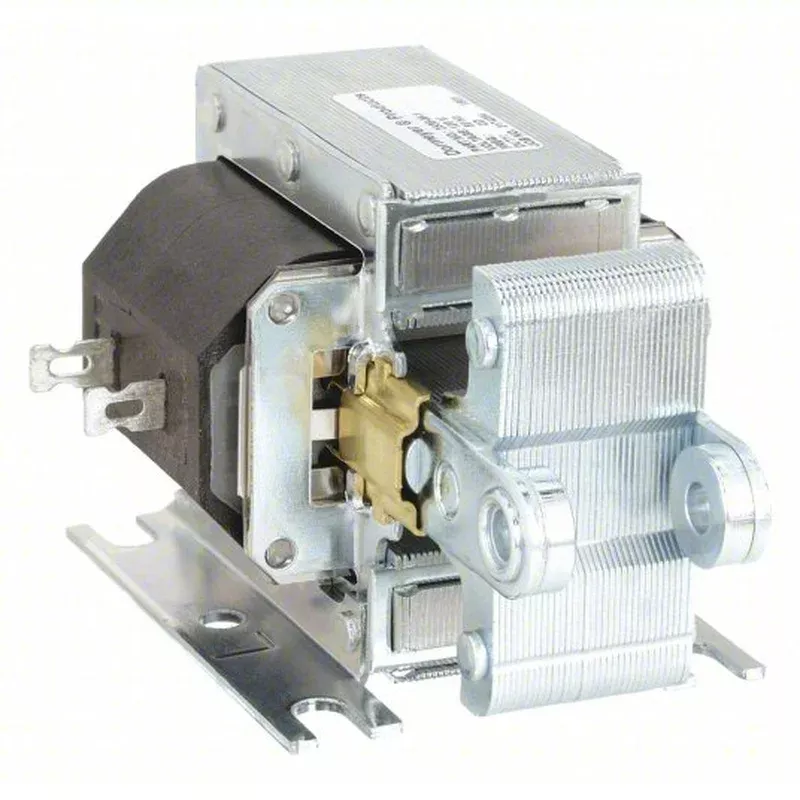

Dormeyer 2536-M-1 Laminated Solenoid 120V AC, Pull-Type, Continuous Duty
Built for high-performance applications, the Dormeyer 2536-M-1 laminated solenoid is engineered for continuous duty with a powerful pull force range and rugged construction. This industry-standard pull-type solenoid is ideal for industrial, HVAC, and appliance use where reliability under heat and load is critical.
Key Features
Heavy-Duty Pull-Type Solenoid Continuous duty cycle for demanding applications
Powerful Pull Force Ranges from 88 oz to 168 oz over a 1 stroke
Durable Construction Laminated steel frame with corrosion-resistant plunger and brass guides
Class A Coil Insulation Ensures thermal protection and durability
Quick Mount Footprint Mounting holes on 2″ x 1 5/8″ centers
RoHS Compliant Built to meet modern safety and environmental standards
Specifications
Manufacturer: Dormeyer
Model: 2536-M-1
Type: Laminated Solenoid, Pull-Type
Voltage: 120V AC @ 60Hz
Duty Cycle: Continuous
Stroke Range: 1/8″ to 1″
Pull Force Range: 88 oz to 168 oz
Coil Resistance: 14.9 Ohms
Seated Current: 0.48 Amps
Current @ Max Stroke: 6.50 Amps
Seated Power: 19 Watts
Terminal Type: Solder Lug
Mounting Hole Spacing: 2″ x 1 5/8″
Dimensions: 2 1/2″ L x 2 1/16″ D x 2 1/16″ W
Country of Origin: USA
Compliance: RoHS
Pull Force by Stroke
@ 1/8″ Stroke: 65 oz
@ 1/4″ Stroke: 35 oz
@ 3/8″ Stroke: 20 oz
@ 1/2″ Stroke: 13 oz
@ 5/8″ Stroke: 5 oz
@ 3/4″ Stroke: 3 oz
@ 1″ Stroke: 1 oz
Applications
Pellet stove feed systems
HVAC damper actuation
Industrial automation
Mechanical locking mechanisms
Home appliance actuation
