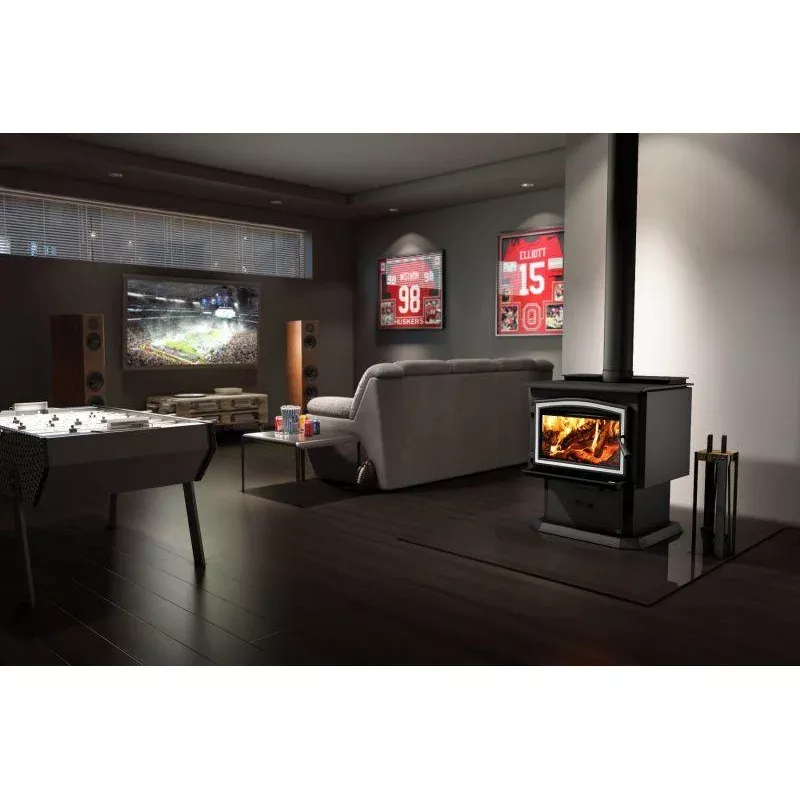

Osburn 3500 Freestanding Woodheater Firebox Only

Specifically designed to face the rigor of winter, the Osburn 3500 is an essential for any spacious home, especially in harsh weather conditions.

Despite its emissions as 2.3 g/h, this wood stove utilizes a user-friendly, non-catalytic technology as well as a significant reduction of fuel consumption.

The unit features a firebox that can hold up to 23 kg of cordwood, as well as a blower, a thermodisc and an airmate for optimal heat distribution and unparalleled comfort.

Features:

• High-efficiency EPA certified stove.
• Ultra-quiet 130 CFM blower with variable speed control.
• Baffle has a high heat-resistant C-cast.
• Firebox lined with refractory bricks for better heat distribution.
• Stainless-steel secondary-air system for improved gas combustion.
• Constant view of the fire.
• Adjustable handle.
• Glass air-wash system.

Specifications

Optimum Efficiency 77% Average Particulate Emissions 1.6 g/kg Steel Thickness – Top 8mm Maximum Log Length 558mm Heating Capacity 260 Square Metres Fuel Type Dry Cordwood Door Materials Glass with Cast Iron Frame Glass Type Ceramic Glass Glass Air-Wash System Yes Firebox Lined with Refractory Bricks Model Pedestal

Dimensions:

733mm (W) x 850mm (D) x 883mm (H)

Firebox: 581mm (W) x 511mm (D) x 327mm (H)

Weight: 238kg

Manuals:

Osburn 3500 Operation and Installation Manual.pdf
