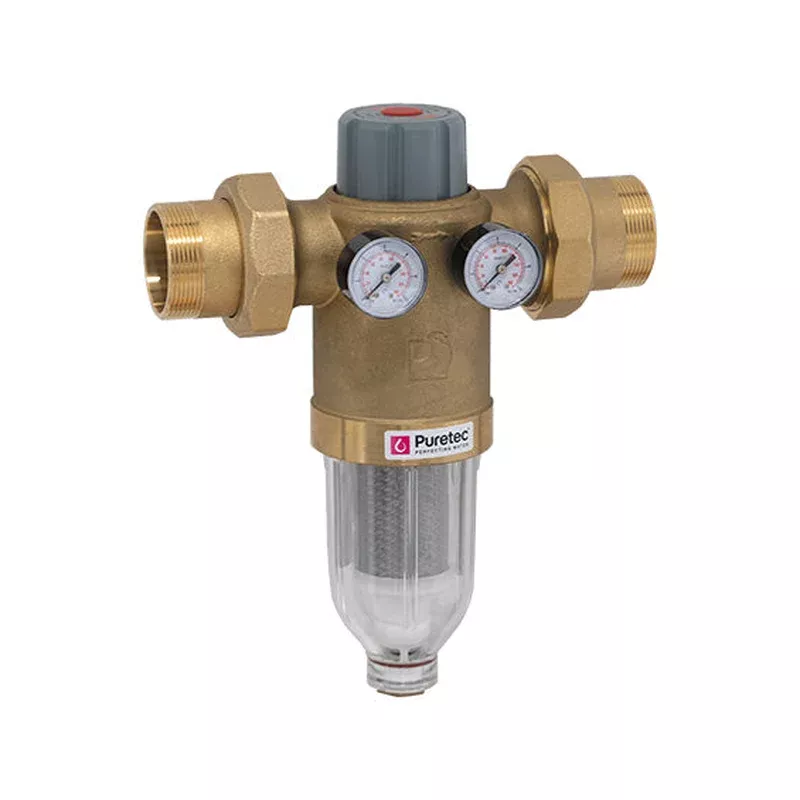

Puretec IMB50 Intelligent Manual Backwash Water Filter System
-
Manual backwash, 89 micron, 236 Lpm, 50mm connection
Puretec IMB50 is an innovative filter with a patented system of cleaning composed by two different actions, brushing of the filtering cartridge and high speed discharge. This method allows an efficient and thorough cleaning both of the filtering cartridge and the filter bowl. The cleaning is started by rotating clockwise the upper green knob. This movement activates, at each click, the brushing system and the opening of the discharge valve which creates a high speed tangential flow which removes impurities accumulated in the filter bowl.
- Brass head means its tough and resistant to mechanical shear stresses.
- Stainless steel net filtering surface is resistant to mechanical shock and pressure gradients.
- Cleaning brushes are equipped with Silver to inhibit bacterial growth.
- Easy to use large turn and click knob to engage backwash function.
SPECIFICATIONS
Ordering Code: IMB50
Micron Rating: 89 Micron
Connection: 2
Flow Rate: 236 Lpm
Min/Max Pressure: 150 – 1000 kPa
Operating Temperature: 0 – 30C (protect from freezing)
Power Supply: Not needed
Warranty: 1 year
Micron rating is nominal. If pressure exceeds max pressure, an approved pressure limiting device needs to be fitted. Note: Check local plumbing regulations as a specific kPa limit for the pressure limiting valve may be required (in particular, The Australian & New Zealand Plumbing Standards. Ref. AS/NZS 3500.1:2021, Clause 3.3.4). If water hammer is present, fit a hammer arrestor close to the source of the hammer.
