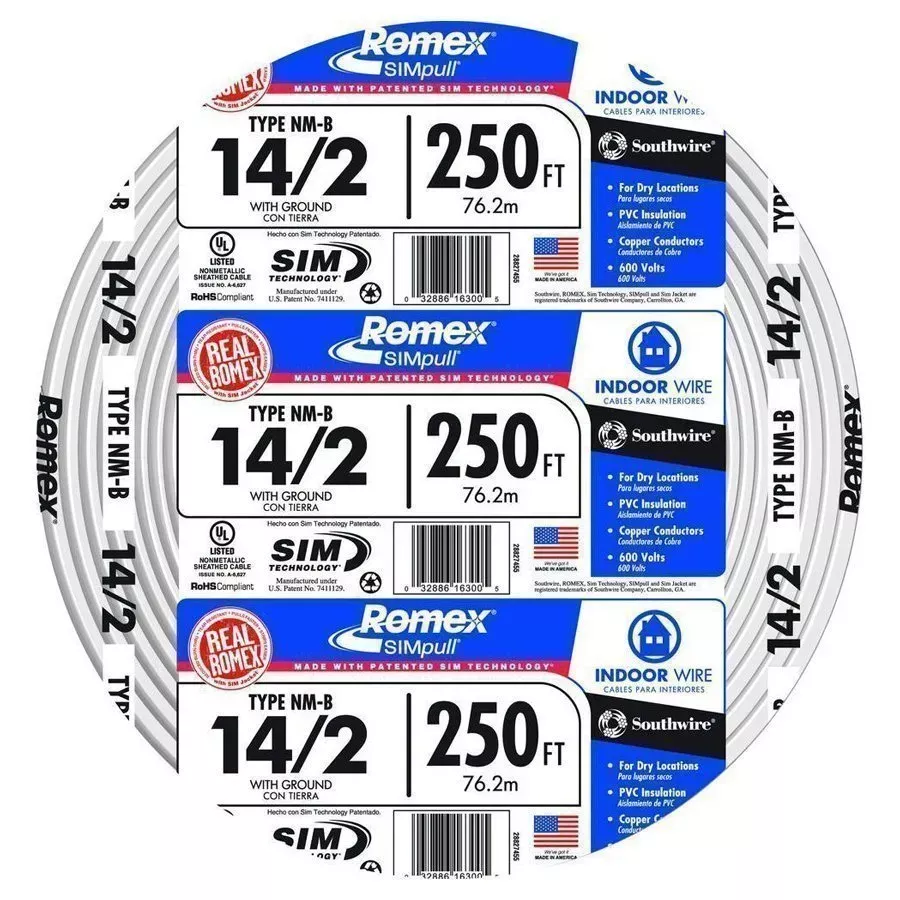

Southwire’s Romex SIMpull Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the 2011 National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations.
- Type NM-B Nonmetallic-Sheathed Cable
- Voltage: 600V
- Color-coded jacket
- Four conductor available with two neutrals
- SIM jacket designed for easier pulling
- Conductor Material: Copper
- National Electrical Code, NFPA 70. 2011 Edition
- Pulls faster
- Tear Resistant
- Reduced Burn-Thru
- Strips Easier
- UL Listed
- RoHS Complaint
- Federal Specification A-A-59544
